#!/usr/bin/env python3
"""
JPK AFM Image Loader & Viewer
=============================
Loads JPK TIFF-based AFM images with all channels,
correct scaling and leveling.

Tested with JPK NanoWizard files.

Dependencies:
    conda install -c conda-forge numpy matplotlib scipy tifffile

Author: Claude and Frank Balzer (ORCID: 0000-0002-6228-6839)
"""

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import LinearSegmentedColormap
from pathlib import Path
from dataclasses import dataclass
from typing import Optional
import warnings
import sys

try:
    import tifffile
except ImportError:
    raise ImportError(
        "tifffile is required.\n"
        "Installation: conda install -c conda-forge tifffile"
    )


# =============================================================================
# DATA STRUCTURES
# =============================================================================

@dataclass
class JPKChannel:
    """Represents a single AFM data channel."""
    name: str
    data: np.ndarray
    unit: str
    is_retrace: bool = False
    multiplier: float = 1.0
    offset: float = 0.0

    @property
    def display_name(self) -> str:
        """Name with trace/retrace indicator."""
        suffix = " (retrace)" if self.is_retrace else " (trace)"
        return self.name + suffix


@dataclass
class JPKImage:
    """Represents a complete JPK AFM image."""
    filename: str
    width_m: float
    height_m: float
    pixels_x: int
    pixels_y: int
    channels: dict
    properties: dict

    @property
    def pixel_size_x(self) -> float:
        return self.width_m / self.pixels_x

    @property
    def pixel_size_y(self) -> float:
        return self.height_m / self.pixels_y

    def get_channel(self, name: str, retrace: bool = False) -> Optional[JPKChannel]:
        """Gets a channel by name and trace/retrace."""
        for ch in self.channels.values():
            if name.lower() in ch.name.lower() and ch.is_retrace == retrace:
                return ch
        # Fallback: search by name only
        for ch in self.channels.values():
            if name.lower() in ch.name.lower():
                return ch
        return None


# =============================================================================
# JPK TIFF TAGS (Custom Tags by JPK Instruments)
# =============================================================================

class JPKTiffTags:
    """JPK-specific TIFF tag IDs."""
    CHANNEL_NAME_SHORT = 32848
    CHANNEL_INDEX = 32849
    CHANNEL_NAME_FULL = 32850
    CHANNEL_PROPERTIES = 32851

    # Scan size (in page 0 / thumbnail)
    SCAN_WIDTH = 32834
    SCAN_HEIGHT = 32835
    PIXELS_X = 32838
    PIXELS_Y = 32839

    # Calibrated height scaling (what we want)
    CALIB_NAME = 33072
    CALIB_DTYPE = 33073
    CALIB_UNIT = 33074
    CALIB_TYPE = 33075
    CALIB_MULTIPLIER = 33076
    CALIB_OFFSET = 33077

    # Alternative scalings
    NOMINAL_MULTIPLIER = 33028
    NOMINAL_OFFSET = 33029
    VOLTS_MULTIPLIER = 32980
    VOLTS_OFFSET = 32981


# =============================================================================
# JPK TIFF LOADER
# =============================================================================

class JPKTiffLoader:
    """Loader for JPK TIFF format AFM files."""

    def __init__(self, filepath: str | Path):
        self.filepath = Path(filepath)
        self.properties = {}
        self.channels = {}

    def load(self) -> JPKImage:
        """Loads the JPK TIFF file."""

        if not self.filepath.exists():
            raise FileNotFoundError(f"File not found: {self.filepath}")

        with tifffile.TiffFile(self.filepath) as tif:
            # Extract scan size from first data image
            scan_width, scan_height = self._extract_scan_size(tif)

            pixels_x = 0
            pixels_y = 0

            # Iterate through all pages
            for i, page in enumerate(tif.pages):
                # Skip thumbnail (typically 64x64 or smallest page)
                if page.shape[0] < 128 or page.shape[1] < 128:
                    continue

                # Remember image size
                if pixels_x == 0:
                    pixels_y, pixels_x = page.shape

                # Extract channel information
                channel = self._extract_channel(page, i)
                if channel is not None:
                    # Create unique key
                    key = f"{channel.name}_{'retrace' if channel.is_retrace else 'trace'}"
                    self.channels[key] = channel

        # Fallback for scan size if not found
        if scan_width == 0:
            scan_width = pixels_x * 1e-8  # 10 nm/pixel as default
        if scan_height == 0:
            scan_height = pixels_y * 1e-8

        return JPKImage(
            filename=self.filepath.name,
            width_m=scan_width,
            height_m=scan_height,
            pixels_x=pixels_x,
            pixels_y=pixels_y,
            channels=self.channels,
            properties=self.properties
        )

    def _extract_scan_size(self, tif: tifffile.TiffFile) -> tuple[float, float]:
        """Extracts scan size from TIFF metadata (page 0)."""

        scan_width = 0.0
        scan_height = 0.0

        # Scan size is stored in page 0 (thumbnail)
        if len(tif.pages) > 0:
            page0 = tif.pages[0]
            tags = page0.tags

            # JPK stores scan size in custom tags
            if JPKTiffTags.SCAN_WIDTH in tags:
                scan_width = float(tags[JPKTiffTags.SCAN_WIDTH].value)

            if JPKTiffTags.SCAN_HEIGHT in tags:
                scan_height = float(tags[JPKTiffTags.SCAN_HEIGHT].value)

        return scan_width, scan_height

    def _extract_channel(self, page: tifffile.TiffPage, page_index: int) -> Optional[JPKChannel]:
        """Extracts channel data and metadata from a TIFF page."""

        tags = page.tags

        # Extract channel name
        channel_name = f"channel_{page_index}"

        if JPKTiffTags.CHANNEL_NAME_SHORT in tags:
            channel_name = str(tags[JPKTiffTags.CHANNEL_NAME_SHORT].value)
        elif JPKTiffTags.CHANNEL_NAME_FULL in tags:
            channel_name = str(tags[JPKTiffTags.CHANNEL_NAME_FULL].value)

        # Trace/Retrace from properties
        is_retrace = False
        if JPKTiffTags.CHANNEL_PROPERTIES in tags:
            props = str(tags[JPKTiffTags.CHANNEL_PROPERTIES].value)
            is_retrace = 'retrace : true' in props.lower() or 'retrace: true' in props.lower()

        # Extract scaling factors
        multiplier = 1.0
        offset = 0.0
        unit = 'a.u.'

        # Preferred: Calibrated scaling
        if JPKTiffTags.CALIB_MULTIPLIER in tags:
            multiplier = float(tags[JPKTiffTags.CALIB_MULTIPLIER].value)
        elif JPKTiffTags.NOMINAL_MULTIPLIER in tags:
            multiplier = float(tags[JPKTiffTags.NOMINAL_MULTIPLIER].value)

        if JPKTiffTags.CALIB_OFFSET in tags:
            offset = float(tags[JPKTiffTags.CALIB_OFFSET].value)
        elif JPKTiffTags.NOMINAL_OFFSET in tags:
            offset = float(tags[JPKTiffTags.NOMINAL_OFFSET].value)

        if JPKTiffTags.CALIB_UNIT in tags:
            unit = str(tags[JPKTiffTags.CALIB_UNIT].value)

        # Load raw data and calibrate
        try:
            raw_data = page.asarray().astype(np.float64)
            calibrated_data = raw_data * multiplier + offset
        except Exception as e:
            warnings.warn(f"Error loading page {page_index}: {e}")
            return None

        return JPKChannel(
            name=channel_name,
            data=calibrated_data,
            unit=unit,
            is_retrace=is_retrace,
            multiplier=multiplier,
            offset=offset
        )


# =============================================================================
# LEVELING FUNCTIONS
# =============================================================================

def level_plane_fit(data: np.ndarray) -> np.ndarray:
    """Plane-fit leveling (removes global tilt)."""
    ny, nx = data.shape
    x = np.arange(nx)
    y = np.arange(ny)
    X, Y = np.meshgrid(x, y)

    A = np.column_stack([X.ravel(), Y.ravel(), np.ones(nx * ny)])
    z = data.ravel()

    # Exclude NaN values
    mask = np.isfinite(z)
    if not mask.all():
        coeffs, _, _, _ = np.linalg.lstsq(A[mask], z[mask], rcond=None)
    else:
        coeffs, _, _, _ = np.linalg.lstsq(A, z, rcond=None)

    plane = coeffs[0] * X + coeffs[1] * Y + coeffs[2]
    return data - plane


def level_line_by_line(data: np.ndarray, order: int = 1) -> np.ndarray:
    """Line-by-line leveling."""
    ny, nx = data.shape
    leveled = np.zeros_like(data)
    x = np.arange(nx)

    for i in range(ny):
        line = data[i, :]
        mask = np.isfinite(line)
        if mask.sum() > order + 1:
            coeffs = np.polyfit(x[mask], line[mask], order)
            baseline = np.polyval(coeffs, x)
            leveled[i, :] = line - baseline
        else:
            leveled[i, :] = line

    return leveled


def level_median_diff(data: np.ndarray) -> np.ndarray:
    """Median-difference leveling for scan artifacts."""
    leveled = data.copy()

    for i in range(1, data.shape[0]):
        diff = np.nanmedian(data[i, :]) - np.nanmedian(data[i-1, :])
        leveled[i, :] -= diff

    leveled -= np.nanmedian(leveled)
    return leveled


def level_robust(data: np.ndarray, percentile_low: float = 10, percentile_high: float = 90) -> np.ndarray:
    """
    Robust leveling in two steps:
    1. Global plane-fit (removes tilt)
    2. Robust line-by-line leveling (ignores holes/particles)

    Args:
        data: 2D height data
        percentile_low: Lower percentile for robust fit (default: 10%)
        percentile_high: Upper percentile for robust fit (default: 90%)

    Returns:
        Leveled array
    """
    ny, nx = data.shape
    x = np.arange(nx)

    # Step 1: Global plane-fit
    step1 = level_plane_fit(data)

    # Step 2: Robust line-by-line leveling
    # Percentile bounds from already leveled data
    p_low = np.nanpercentile(step1, percentile_low)
    p_high = np.nanpercentile(step1, percentile_high)

    step2 = np.zeros_like(step1)
    for i in range(ny):
        line = step1[i, :]
        # Mask: only "normal" values (no holes/particles)
        mask = (line >= p_low) & (line <= p_high) & np.isfinite(line)

        if mask.sum() > 2:
            coeffs = np.polyfit(x[mask], line[mask], 1)
            baseline = np.polyval(coeffs, x)
            step2[i, :] = line - baseline
        else:
            step2[i, :] = line

    return step2


def level_line_robust(data: np.ndarray, order: int = 1,
                      percentile_low: float = 10, percentile_high: float = 90) -> np.ndarray:
    """
    Robust line-by-line leveling in two steps:
    1. Normal line-by-line leveling
    2. Robust line-by-line leveling (ignores holes/particles)

    Args:
        data: 2D height data
        order: Polynomial order for fit (default: 1 = linear)
        percentile_low: Lower percentile for robust fit (default: 10%)
        percentile_high: Upper percentile for robust fit (default: 90%)

    Returns:
        Leveled array
    """
    ny, nx = data.shape
    x = np.arange(nx)

    # Step 1: Normal line-by-line leveling
    step1 = np.zeros_like(data)
    for i in range(ny):
        line = data[i, :]
        mask = np.isfinite(line)
        if mask.sum() > order + 1:
            coeffs = np.polyfit(x[mask], line[mask], order)
            baseline = np.polyval(coeffs, x)
            step1[i, :] = line - baseline
        else:
            step1[i, :] = line

    # Step 2: Robust line-by-line leveling
    # Percentile bounds from already leveled data
    p_low = np.nanpercentile(step1, percentile_low)
    p_high = np.nanpercentile(step1, percentile_high)

    step2 = np.zeros_like(step1)
    for i in range(ny):
        line = step1[i, :]
        # Mask: only "normal" values (no holes/particles)
        mask = (line >= p_low) & (line <= p_high) & np.isfinite(line)

        if mask.sum() > order + 1:
            coeffs = np.polyfit(x[mask], line[mask], order)
            baseline = np.polyval(coeffs, x)
            step2[i, :] = line - baseline
        else:
            step2[i, :] = line

    return step2


def apply_leveling(data: np.ndarray, method: str = 'plane',
                   percentile_low: float = 10, percentile_high: float = 90) -> np.ndarray:
    """
    Applies leveling.

    Args:
        data: 2D height data
        method: Leveling method
        percentile_low: Lower percentile for robust methods (default: 10%)
        percentile_high: Upper percentile for robust methods (default: 90%)
    """
    if method == 'plane':
        return level_plane_fit(data)
    elif method == 'line':
        return level_line_by_line(data)
    elif method == 'median':
        return level_median_diff(data)
    elif method == 'robust':
        return level_robust(data, percentile_low, percentile_high)
    elif method == 'line_robust':
        return level_line_robust(data, percentile_low=percentile_low,
                                  percentile_high=percentile_high)
    else:
        raise ValueError(f"Method '{method}' unknown. Available: plane, line, median, robust, line_robust")


# =============================================================================
# VISUALIZATION
# =============================================================================

def create_afm_colormap():
    """AFM-typische Farbskala (braun-gold)."""
    colors = [
        (0.2, 0.1, 0.0),
        (0.4, 0.2, 0.1),
        (0.6, 0.4, 0.2),
        (0.8, 0.6, 0.3),
        (1.0, 0.9, 0.7),
    ]
    return LinearSegmentedColormap.from_list('afm_brown', colors)


def format_scale(value_m: float) -> tuple[float, str]:
    """Converts meters to appropriate unit."""
    if abs(value_m) >= 1e-3:
        return value_m * 1e3, 'mm'
    elif abs(value_m) >= 1e-6:
        return value_m * 1e6, 'µm'
    elif abs(value_m) >= 1e-9:
        return value_m * 1e9, 'nm'
    else:
        return value_m * 1e12, 'pm'


def plot_afm_image(image: JPKImage,
                   channel_name: str = 'height',
                   retrace: bool = False,
                   leveling: str = 'plane',
                   colormap: str = 'afm',
                   figsize: tuple = (10, 8),
                   show_histogram: bool = False,
                   enhance_contrast: bool = True,
                   percentile_low: float = 10,
                   percentile_high: float = 90) -> plt.Figure:
    """
    Displays an AFM image.

    Args:
        image: JPKImage object
        channel_name: Channel name (e.g. 'height', 'error', 'adhesion')
        retrace: True for retrace, False for trace
        leveling: 'plane', 'line', 'median', 'robust', 'line_robust' or None
        colormap: 'afm', 'viridis', etc.
        figsize: Figure size
        percentile_low: Lower percentile for robust leveling
        percentile_high: Upper percentile for robust leveling
    """
    # Find channel
    channel = image.get_channel(channel_name, retrace)

    if channel is None:
        available = [f"{ch.name} ({'retrace' if ch.is_retrace else 'trace'})"
                     for ch in image.channels.values()]
        raise ValueError(f"Channel '{channel_name}' not found.\nAvailable: {available}")

    # Data and leveling
    data = channel.data.copy()
    if leveling and channel.unit == 'm':
        data = apply_leveling(data, method=leveling,
                              percentile_low=percentile_low,
                              percentile_high=percentile_high)

    # Units for XY axes
    width_scaled, x_unit = format_scale(image.width_m)
    height_scaled, y_unit = format_scale(image.height_m)

    # Z unit depending on channel
    if channel.unit == 'm':
        z_range = np.nanmax(data) - np.nanmin(data)
        _, z_unit = format_scale(z_range)
        scale_factors = {'mm': 1e3, 'µm': 1e6, 'nm': 1e9, 'pm': 1e12}
        z_scale = scale_factors.get(z_unit, 1)
        data_display = data * z_scale
        # Set minimum to 0
        data_display = data_display - np.nanmin(data_display)
        # Stretch contrast (optional)
        if enhance_contrast:
            p_low = np.nanpercentile(data_display, 2)
            p_high = np.nanpercentile(data_display, 98)
            data_display = np.clip(data_display, p_low, p_high)
        colorbar_label = f'Height ({z_unit})'
        use_cmap = create_afm_colormap() if colormap == 'afm' else colormap
    elif channel.unit == 'V':
        data_display = data * 1e3  # mV
        z_unit = 'mV'
        colorbar_label = f'{channel.name} ({z_unit})'
        use_cmap = create_afm_colormap() if colormap == 'afm' else colormap
    elif channel.unit == '°' or 'phase' in channel.name.lower():
        data_display = data
        # Stretch contrast (optional)
        if enhance_contrast:
            p_low = np.nanpercentile(data_display, 2)
            p_high = np.nanpercentile(data_display, 98)
            data_display = np.clip(data_display, p_low, p_high)
        z_unit = '°'
        colorbar_label = 'Phase (°)'
        use_cmap = 'gray'
    else:
        data_display = data
        z_unit = channel.unit if channel.unit else 'a.u.'
        colorbar_label = f'{channel.name} ({z_unit})'
        use_cmap = create_afm_colormap() if colormap == 'afm' else colormap

    # Plot erstellen
    if show_histogram:
        fig, (ax, ax_hist) = plt.subplots(2, 1, figsize=(figsize[0], figsize[1] + 2),
                                          gridspec_kw={'height_ratios': [4, 1]})
    else:
        fig, ax = plt.subplots(figsize=figsize)

    extent = [0, width_scaled, 0, height_scaled]

    im = ax.imshow(data_display, origin='lower', extent=extent,
                   cmap=use_cmap, aspect='equal')

    ax.set_xlabel(f'X ({x_unit})')
    ax.set_ylabel(f'Y ({y_unit})')

    trace_str = "Retrace" if channel.is_retrace else "Trace"
    level_str = f", Leveling: {leveling}" if leveling else ""
    ax.set_title(f"{image.filename}\n{channel.name} ({trace_str}){level_str}")

    cbar = fig.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
    cbar.set_label(colorbar_label)

    # Statistics
    stats = (
        f"Size: {width_scaled:.2f} × {height_scaled:.2f} {x_unit}\n"
        f"Pixel: {image.pixels_x} × {image.pixels_y}\n"
        f"Z-Range: {np.nanmax(data_display) - np.nanmin(data_display):.2f} {z_unit}\n"
        f"RMS: {np.nanstd(data_display):.2f} {z_unit}"
    )

    ax.text(0.02, 0.98, stats, transform=ax.transAxes,
            verticalalignment='top', fontsize=9, family='monospace',
            bbox=dict(boxstyle='round', facecolor='white', alpha=0.8))

    # Histogram
    if show_histogram:
        hist_data = data_display.flatten()
        hist_data = hist_data[np.isfinite(hist_data)]
        ax_hist.hist(hist_data, bins=100, color='steelblue', edgecolor='none', alpha=0.7)
        ax_hist.set_xlabel(colorbar_label)
        ax_hist.set_ylabel('Count')
        ax_hist.set_title('Height Distribution')
        ax_hist.axvline(np.mean(hist_data), color='red', linestyle='--',
                        label=f'Mean: {np.mean(hist_data):.2f}')
        ax_hist.axvline(np.median(hist_data), color='orange', linestyle='-',
                        label=f'Median: {np.median(hist_data):.2f}')
        ax_hist.legend(fontsize=8)

    plt.tight_layout()
    enable_clipboard_shortcut(fig)
    return fig


def plot_all_channels(image: JPKImage,
                      leveling: str = 'plane',
                      trace_only: bool = True,
                      figsize: tuple = (16, 12),
                      enhance_contrast: bool = True,
                      percentile_low: float = 10,
                      percentile_high: float = 90) -> plt.Figure:
    """Displays all channels in a grid."""

    # Filter channels
    if trace_only:
        channels = [ch for ch in image.channels.values() if not ch.is_retrace]
    else:
        channels = list(image.channels.values())

    n_channels = len(channels)
    if n_channels == 0:
        raise ValueError("No channels found")

    # Calculate grid layout
    n_cols = min(3, n_channels)
    n_rows = (n_channels + n_cols - 1) // n_cols

    fig, axes = plt.subplots(n_rows, n_cols, figsize=figsize)
    if n_channels == 1:
        axes = np.array([axes])
    axes = axes.flatten()

    # Extent for all images
    width_scaled, x_unit = format_scale(image.width_m)
    height_scaled, y_unit = format_scale(image.height_m)
    extent = [0, width_scaled, 0, height_scaled]

    cmap = create_afm_colormap()

    for i, channel in enumerate(channels):
        ax = axes[i]

        data = channel.data.copy()
        if leveling and channel.unit == 'm':
            data = apply_leveling(data, method=leveling,
                                  percentile_low=percentile_low,
                                  percentile_high=percentile_high)

        # Scaling depending on channel
        if channel.unit == 'm':
            z_range = np.nanmax(data) - np.nanmin(data)
            _, z_unit = format_scale(z_range)
            scale_factors = {'mm': 1e3, 'µm': 1e6, 'nm': 1e9, 'pm': 1e12}
            z_scale = scale_factors.get(z_unit, 1)
            data_display = data * z_scale
            # Set minimum to 0
            data_display = data_display - np.nanmin(data_display)
            # Stretch contrast (optional)
            if enhance_contrast:
                p_low = np.nanpercentile(data_display, 2)
                p_high = np.nanpercentile(data_display, 98)
                data_display = np.clip(data_display, p_low, p_high)
            colorbar_label = f'Height ({z_unit})'
            use_cmap = cmap
        elif channel.unit == 'V':
            data_display = data * 1e3
            z_unit = 'mV'
            colorbar_label = f'{channel.name} ({z_unit})'
            use_cmap = cmap
        elif channel.unit == '°' or 'phase' in channel.name.lower():
            data_display = data
            # Stretch contrast (optional)
            if enhance_contrast:
                p_low = np.nanpercentile(data_display, 2)
                p_high = np.nanpercentile(data_display, 98)
                data_display = np.clip(data_display, p_low, p_high)
            z_unit = '°'
            colorbar_label = 'Phase (°)'
            use_cmap = 'gray'
        else:
            data_display = data
            z_unit = channel.unit if channel.unit else 'a.u.'
            colorbar_label = f'{channel.name} ({z_unit})'
            use_cmap = cmap

        im = ax.imshow(data_display, origin='lower', extent=extent,
                       cmap=use_cmap, aspect='equal')

        ax.set_xlabel(f'X ({x_unit})')
        ax.set_ylabel(f'Y ({y_unit})')

        trace_str = "R" if channel.is_retrace else "T"
        ax.set_title(f"{channel.name} ({trace_str})\nZ: {np.nanmax(data_display) - np.nanmin(data_display):.2f} {z_unit}")

        cbar = fig.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
        cbar.set_label(colorbar_label)

    # Hide empty subplots
    for i in range(n_channels, len(axes)):
        axes[i].set_visible(False)

    fig.suptitle(f"{image.filename}", fontsize=14, fontweight='bold')
    plt.tight_layout()
    enable_clipboard_shortcut(fig)
    return fig


# =============================================================================
# MULTI-FILE FUNCTIONS
# =============================================================================

def copy_figure_to_clipboard(fig=None):
    """
    Copies the current figure to clipboard (Windows).

    Args:
        fig: matplotlib Figure (if None, current figure is used)
    """
    import io

    if fig is None:
        fig = plt.gcf()

    # Save figure as PNG to buffer
    buf = io.BytesIO()
    fig.savefig(buf, format='png', dpi=150, bbox_inches='tight',
                facecolor='white', edgecolor='none')
    buf.seek(0)

    try:
        # Windows: PIL + win32clipboard
        from PIL import Image
        import win32clipboard

        # Convert PNG to BMP (Windows clipboard requires BMP)
        img = Image.open(buf)
        output = io.BytesIO()
        img.convert('RGB').save(output, 'BMP')
        data = output.getvalue()[14:]  # Remove BMP header
        output.close()

        win32clipboard.OpenClipboard()
        win32clipboard.EmptyClipboard()
        win32clipboard.SetClipboardData(win32clipboard.CF_DIB, data)
        win32clipboard.CloseClipboard()

        print("✓ Figure copied to clipboard!")

    except ImportError:
        # Fallback: Save as file
        temp_path = Path.home() / "afm_clipboard_temp.png"
        buf.seek(0)
        with open(temp_path, 'wb') as f:
            f.write(buf.read())
        print(f"win32clipboard not installed.")
        print(f"Installation: conda install pywin32")
        print(f"Image saved as: {temp_path}")

    buf.close()


def enable_clipboard_shortcut(fig=None):
    """
    Enables Ctrl+C to copy the figure.

    Args:
        fig: matplotlib Figure
    """
    if fig is None:
        fig = plt.gcf()

    def on_key(event):
        if event.key == 'ctrl+c':
            copy_figure_to_clipboard(fig)

    fig.canvas.mpl_connect('key_press_event', on_key)
    print("Tip: Ctrl+C copies the image to clipboard")

def plot_multiple_files(filepaths: list,
                        channel_name: str = 'height',
                        retrace: bool = False,
                        leveling: str = 'plane',
                        colormap: str = 'afm',
                        figsize: tuple = None,
                        titles: list = None,
                        show_histogram: bool = False,
                        enhance_contrast: bool = True,
                        percentile_low: float = 10,
                        percentile_high: float = 90) -> plt.Figure:
    """

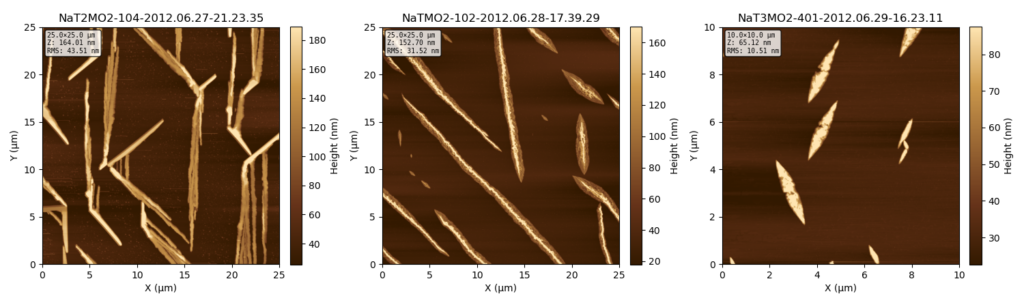

    Displays multiple JPK files side by side.

    Args:
        filepaths: List of file paths
        channel_name: Channel name
        retrace: True for retrace
        leveling: Leveling method
        colormap: Color scale
        figsize: Figure size (automatic if None)
        titles: Optional titles for each image
        show_histogram: Show histogram below each image
        enhance_contrast: Contrast enhancement (2-98 percentile)

    Returns:
        matplotlib Figure
    """
    n_files = len(filepaths)
    if n_files == 0:
        raise ValueError("No files specified")

    # Calculate grid layout
    if n_files <= 3:
        n_cols = n_files
        n_rows = 1
    elif n_files <= 6:
        n_cols = 3
        n_rows = 2
    elif n_files <= 9:
        n_cols = 3
        n_rows = 3
    else:
        n_cols = 4
        n_rows = (n_files + 3) // 4

    # Figure size
    if figsize is None:
        if show_histogram:
            figsize = (5 * n_cols, 6 * n_rows)  # More space for histograms
        else:
            figsize = (5 * n_cols, 4.5 * n_rows)

    # With histogram: Double rows (image + histogram)
    if show_histogram:
        fig, axes = plt.subplots(n_rows * 2, n_cols, figsize=figsize, squeeze=False,
                                  gridspec_kw={'height_ratios': [3, 1] * n_rows})
        img_axes = axes[0::2].flatten()  # Every second row (images)
        hist_axes = axes[1::2].flatten()  # Every second row (histograms)
    else:
        fig, axes = plt.subplots(n_rows, n_cols, figsize=figsize, squeeze=False)
        img_axes = axes.flatten()
        hist_axes = [None] * len(img_axes)

    cmap = create_afm_colormap() if colormap == 'afm' else colormap

    # Load all images
    images = []
    for fp in filepaths:
        try:
            img = load_jpk_image(fp)
            images.append(img)
        except Exception as e:
            print(f"Error loading {fp}: {e}")
            images.append(None)

    for i, (ax, ax_hist, image) in enumerate(zip(img_axes, hist_axes, images)):
        if image is None:
            ax.set_visible(False)
            if ax_hist is not None:
                ax_hist.set_visible(False)
            continue

        # Get channel
        channel = image.get_channel(channel_name, retrace)
        if channel is None:
            ax.text(0.5, 0.5, f"Channel '{channel_name}'\nnot found",
                    ha='center', va='center', transform=ax.transAxes)
            ax.set_title(image.filename)
            continue

        # Data and leveling
        data = channel.data.copy()
        if leveling and channel.unit == 'm':
            data = apply_leveling(data, method=leveling,
                                  percentile_low=percentile_low,
                                  percentile_high=percentile_high)

        # Units
        width_scaled, x_unit = format_scale(image.width_m)
        height_scaled, y_unit = format_scale(image.height_m)

        # Z unit depending on channel
        if channel.unit == 'm':
            z_range = np.nanmax(data) - np.nanmin(data)
            _, z_unit = format_scale(z_range)
            scale_factors = {'mm': 1e3, 'µm': 1e6, 'nm': 1e9, 'pm': 1e12}
            z_scale = scale_factors.get(z_unit, 1)
            data_display = data * z_scale
            # Set minimum to 0
            data_display = data_display - np.nanmin(data_display)
            # Stretch contrast (optional)
            if enhance_contrast:
                p_low = np.nanpercentile(data_display, 2)
                p_high = np.nanpercentile(data_display, 98)
                data_display = np.clip(data_display, p_low, p_high)
            colorbar_label = f'Height ({z_unit})'
            use_cmap = cmap
        elif channel.unit == 'V':
            data_display = data * 1e3
            z_unit = 'mV'
            colorbar_label = f'{channel.name} ({z_unit})'
            use_cmap = cmap
        elif channel.unit == '°' or 'phase' in channel.name.lower():
            data_display = data
            # Stretch contrast (optional)
            if enhance_contrast:
                p_low = np.nanpercentile(data_display, 2)
                p_high = np.nanpercentile(data_display, 98)
                data_display = np.clip(data_display, p_low, p_high)
            z_unit = '°'
            colorbar_label = 'Phase (°)'
            use_cmap = 'gray'
        else:
            data_display = data
            z_unit = channel.unit if channel.unit else 'a.u.'
            colorbar_label = f'{channel.name} ({z_unit})'
            use_cmap = cmap

        extent = [0, width_scaled, 0, height_scaled]

        im = ax.imshow(data_display, origin='lower', extent=extent,
                       cmap=use_cmap, aspect='equal')

        ax.set_xlabel(f'X ({x_unit})')
        ax.set_ylabel(f'Y ({y_unit})')

        # Title
        if titles and i < len(titles):
            title = titles[i]
        else:
            title = Path(filepaths[i]).stem  # Filename without extension

        z_range_display = np.nanmax(data_display) - np.nanmin(data_display)
        ax.set_title(f"{title}")

        # Statistics box
        stats = (
            f"{width_scaled:.1f}×{height_scaled:.1f} {x_unit}\n"
            f"Z: {z_range_display:.2f} {z_unit}\n"
            f"RMS: {np.nanstd(data_display):.2f} {z_unit}"
        )
        ax.text(0.02, 0.98, stats, transform=ax.transAxes,
                verticalalignment='top', fontsize=7, family='monospace',
                bbox=dict(boxstyle='round', facecolor='white', alpha=0.8))

        cbar = fig.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
        cbar.set_label(colorbar_label)

        # Histogram
        if ax_hist is not None:
            hist_data = data_display.flatten()
            hist_data = hist_data[np.isfinite(hist_data)]
            ax_hist.hist(hist_data, bins=50, color='steelblue', edgecolor='none', alpha=0.7)
            ax_hist.set_xlabel(colorbar_label, fontsize=8)
            ax_hist.set_ylabel('Count', fontsize=8)
            ax_hist.tick_params(labelsize=7)

    # Hide empty subplots
    for i in range(n_files, len(img_axes)):
        img_axes[i].set_visible(False)
        if show_histogram:
            hist_axes[i].set_visible(False)

    plt.tight_layout()
    enable_clipboard_shortcut(fig)
    return fig


def select_files_dialog(sort_by: str = 'name') -> list:
    """
    Opens a file selection dialog for multiple JPK files.

    Args:
        sort_by: Sorting - 'name' (alphabetical), 'date' (modification date),
                 'none' (as returned by dialog)

    Returns:
        List of selected file paths
    """
    try:
        import tkinter as tk
        from tkinter import filedialog
    except ImportError:
        raise ImportError("tkinter is required for the file dialog")

    root = tk.Tk()
    root.withdraw()  # Hide main window
    root.attributes('-topmost', True)  # Bring dialog to foreground

    filepaths = filedialog.askopenfilenames(
        title="Select JPK files",
        filetypes=[
            ("JPK Files", "*.jpk *.jpk-qi-image *.jpk-force-map"),
            ("All Files", "*.*")
        ]
    )

    root.destroy()
    filepaths = list(filepaths)

    # Apply sorting
    if sort_by == 'name':
        filepaths.sort(key=lambda x: Path(x).name.lower())
    elif sort_by == 'date':
        filepaths.sort(key=lambda x: Path(x).stat().st_mtime)
    # 'none' = no sorting

    return filepaths


def select_files_interactive() -> list:
    """
    Interactive file selection with order control.
    Opens the dialog multiple times and adds files in the desired order.

    Returns:
        List of file paths in selection order
    """
    try:
        import tkinter as tk
        from tkinter import filedialog, messagebox
    except ImportError:
        raise ImportError("tkinter is required for the file dialog")

    filepaths = []

    root = tk.Tk()
    root.withdraw()

    print("Interactive file selection:")
    print("  - Select files individually or in groups")
    print("  - Click 'Cancel' when done")
    print()

    while True:
        root.attributes('-topmost', True)

        selected = filedialog.askopenfilenames(
            title=f"Select file(s) (so far: {len(filepaths)}) - Cancel when done",
            filetypes=[
                ("JPK Files", "*.jpk *.jpk-qi-image *.jpk-force-map"),
                ("All Files", "*.*")
            ]
        )

        if not selected:
            break

        for fp in selected:
            if fp not in filepaths:
                filepaths.append(fp)
                print(f"  {len(filepaths)}. {Path(fp).name}")

    root.destroy()

    print(f"\n{len(filepaths)} file(s) selected")
    return filepaths


def quick_compare(filepaths: list = None,
                  channel: str = 'height',
                  leveling: str = 'plane',
                  sort_by: str = 'name',
                  interactive: bool = False) -> plt.Figure:
    """
    Quick comparison of multiple files.

    Args:
        filepaths: List of paths (opens dialog if None)
        channel: Channel name
        leveling: Leveling method
        sort_by: Sorting - 'name', 'date', 'none'
        interactive: If True, opens dialog multiple times for exact order

    Example:
        # With file dialog (alphabetically sorted)
        quick_compare()

        # With interactive order
        quick_compare(interactive=True)

        # Sorted by date
        quick_compare(sort_by='date')

        # With explicit list (custom order)
        quick_compare([r"C:/Data/scan1.jpk", r"C:/Data/scan2.jpk"])
    """
    if filepaths is None:
        if interactive:
            filepaths = select_files_interactive()
        else:
            filepaths = select_files_dialog(sort_by=sort_by)

    if not filepaths:
        print("No files selected")
        return None

    print(f"Loading {len(filepaths)} file(s)...")
    for i, fp in enumerate(filepaths, 1):
        print(f"  {i}. {Path(fp).name}")

    fig = plot_multiple_files(filepaths, channel_name=channel, leveling=leveling)
    plt.show()

    return fig


# =============================================================================
# MAIN FUNCTIONS
# =============================================================================

def load_jpk_image(filepath: str | Path) -> JPKImage:
    """
    Loads a JPK AFM image file.

    Args:
        filepath: Path to .jpk file

    Returns:
        JPKImage object with all channels
    """
    loader = JPKTiffLoader(filepath)
    return loader.load()


def list_channels(image: JPKImage) -> list[str]:
    """Lists all channels."""
    result = []
    for key, ch in image.channels.items():
        trace_str = "retrace" if ch.is_retrace else "trace"
        result.append(f"{ch.name} ({trace_str}) - Unit: {ch.unit}")
    return result


def get_height_data(image: JPKImage,
                    retrace: bool = False,
                    leveling: str = 'plane') -> np.ndarray:
    """Extracts height data."""
    channel = image.get_channel('height', retrace)
    if channel is None:
        raise ValueError("Height channel not found")

    data = channel.data.copy()
    if leveling:
        data = apply_leveling(data, method=leveling)
    return data


# =============================================================================
# INTERACTIVE USAGE
# =============================================================================

def quick_view(filepath: str | Path, channel: str = 'height', leveling: str = 'plane'):
    """
    Quick display of a JPK file.

    Example:
        quick_view(r"C:/Data/scan.jpk")
        quick_view(r"C:/Data/scan.jpk", channel='error')
    """
    image = load_jpk_image(filepath)

    print(f"File: {image.filename}")
    print(f"Size: {image.pixels_x} × {image.pixels_y} Pixel")
    print(f"Scan: {image.width_m*1e6:.2f} × {image.height_m*1e6:.2f} µm")
    print(f"\nChannels:")
    for ch_info in list_channels(image):
        print(f"  - {ch_info}")

    fig = plot_afm_image(image, channel_name=channel, leveling=leveling)
    plt.show()

    return image


# =============================================================================
# COMMAND LINE
# =============================================================================

if __name__ == "__main__":
    import argparse

    parser = argparse.ArgumentParser(description='JPK AFM Viewer')
    parser.add_argument('files', nargs='*', help='JPK file(s)')
    parser.add_argument('-c', '--channel', default='height', help='Channel')
    parser.add_argument('-l', '--leveling', default='plane',
                        choices=['plane', 'line', 'median', 'robust', 'line_robust', 'none'])
    parser.add_argument('--plow', type=float, default=10,
                        help='Lower percentile for robust leveling (default: 10)')
    parser.add_argument('--phigh', type=float, default=90,
                        help='Upper percentile for robust leveling (default: 90)')
    parser.add_argument('-r', '--retrace', action='store_true', help='Show retrace')
    parser.add_argument('--all', action='store_true', help='Show all channels')
    parser.add_argument('--list', action='store_true', help='List channels')
    parser.add_argument('--histogram', action='store_true', help='Show histogram')
    parser.add_argument('--no-enhance', action='store_true', help='Disable contrast enhancement')
    parser.add_argument('-o', '--output', help='Output file')
    parser.add_argument('--select', action='store_true', help='Open file selection dialog')
    parser.add_argument('--interactive', '-i', action='store_true',
                        help='Interactive file selection (for exact order)')
    parser.add_argument('--sort', choices=['name', 'date', 'none'], default='name',
                        help='Sorting: name (alphabetical), date (modification date), none')

    args = parser.parse_args()

    # File selection dialog
    if args.select or args.interactive or not args.files:
        if args.select or args.interactive or len(sys.argv) == 1:
            if args.interactive:
                filepaths = select_files_interactive()
            else:
                filepaths = select_files_dialog(sort_by=args.sort)
            if not filepaths:
                print("No files selected")
                sys.exit(0)
        else:
            parser.print_help()
            print("\n\nExamples:")
            print("  python jpk_afm_viewer_v2.py scan.jpk")
            print("  python jpk_afm_viewer_v2.py scan1.jpk scan2.jpk scan3.jpk")
            print("  python jpk_afm_viewer_v2.py --select")
            print("  python jpk_afm_viewer_v2.py --select --sort date")
            print("  python jpk_afm_viewer_v2.py -i  # Interactive for exact order")
            print("  python jpk_afm_viewer_v2.py *.jpk")
            sys.exit(0)
    else:
        filepaths = args.files

    leveling = None if args.leveling == 'none' else args.leveling

    # Single file
    if len(filepaths) == 1:
        image = load_jpk_image(filepaths[0])

        if args.list:
            print(f"Channels in {image.filename}:")
            for ch in list_channels(image):
                print(f"  {ch}")
            sys.exit(0)

        enhance = not args.no_enhance

        if args.all:
            fig = plot_all_channels(image, leveling=leveling, enhance_contrast=enhance,
                                    percentile_low=args.plow, percentile_high=args.phigh)
        else:
            fig = plot_afm_image(image, channel_name=args.channel,
                                retrace=args.retrace, leveling=leveling,
                                show_histogram=args.histogram,
                                enhance_contrast=enhance,
                                percentile_low=args.plow, percentile_high=args.phigh)

    # Multiple files
    else:
        print(f"Loading {len(filepaths)} files in the following order:")
        for i, fp in enumerate(filepaths, 1):
            print(f"  {i}. {Path(fp).name}")
        enhance = not args.no_enhance
        fig = plot_multiple_files(filepaths,
                                  channel_name=args.channel,
                                  retrace=args.retrace,
                                  leveling=leveling,
                                  show_histogram=args.histogram,
                                  enhance_contrast=enhance,
                                  percentile_low=args.plow, percentile_high=args.phigh)

    if args.output:
        fig.savefig(args.output, dpi=150, bbox_inches='tight')
        print(f"Saved: {args.output}")
    else:
        plt.show()
